Lightweight Integrated Brass Manifold 2-12 Ways – XF20099 Distributor
Basic Info
| Model Number | Actuator Interface | Main/Branch Size (G) | Max Capacity | Material | Max Pressure (PN) | Working Temp |
| XF87890 | M30x1.5 | Main: G1" Branch: G3/4" |
2 - 12 Ways (Loops) | Body: Brass Customization Available (HPB57-3) (CW617N) (Polished & Lacquered) (Sandblasted Nickel Plating)Seals: EPDM Handwheel: ABS |
10 Bar (PN10) | ≤100℃ |
Media & Operational Standards

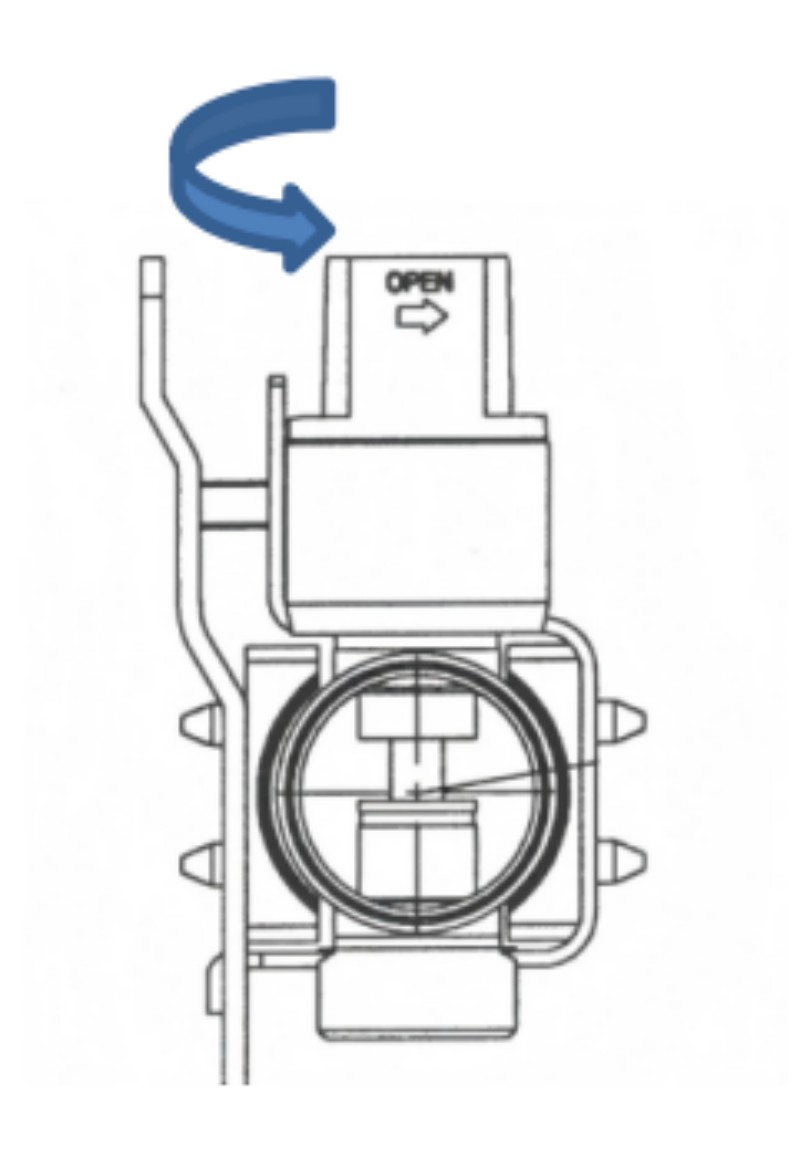

| Category | Parameter | Technical Detail |
| Media Compatibility | Supported Media | Water, Glycol Solutions |
| Media Compatibility | Max Glycol Proportion | 50% |
| System Adjustment | Balance Valve Tool | 5mm Hex Wrench |
| Valve Operation | Control Logic | Clockwise: Close Counter-clockwise: Open |
| Installation | Min. Height from Floor | ≥ 30 cm |
| Safety Threshold | High Temp Protection | Mixing device required if supply temp > 60°C |
| Safety Threshold | Anti-freeze Measure | Required when ambient temp < 0°C |
| Commercial | Warranty Period | 2 Years |

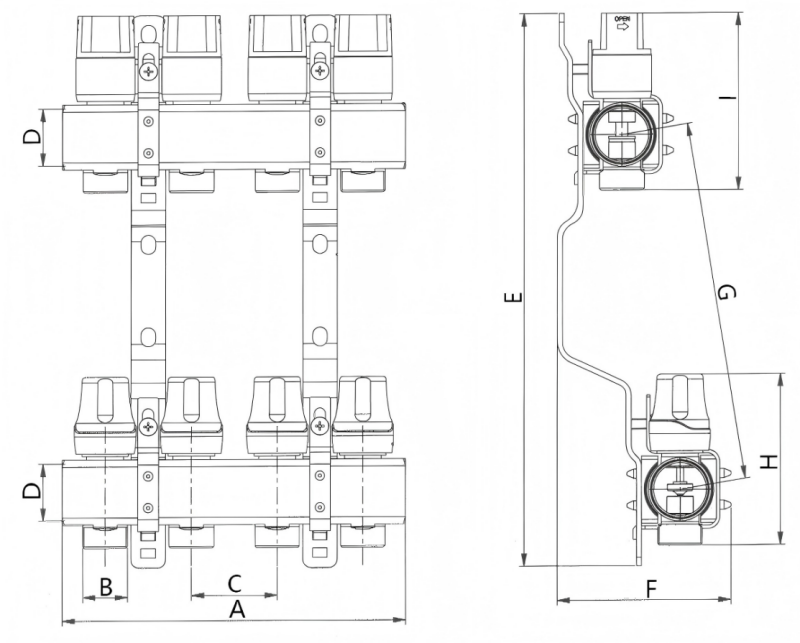

Detailed Dimensions
| Parameter | Value | Description |
| A | 200 mm | Bracket Mounting Width |
| B | G 3/4” | Branch Pipe Thread |
| C | 50 mm | Branch Spacing |
| D | G 1” | Main Pipe Diameter |
| E | 322 mm | Total System Height |
| F | 101.5 mm | Supply/Return Pipe Offset |
| G | 210 mm | Total System Depth |
| H | 99.5 mm | Base Height H |
| I | 103.2 mm | Base Height I |
| Interface | M30x1.5 | Actuator Connection |

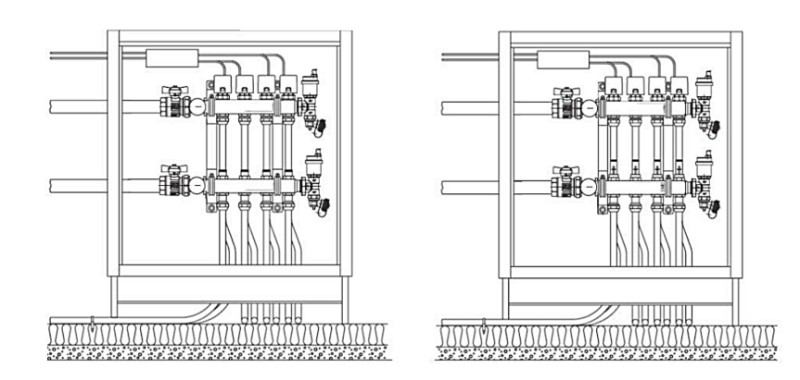

Loop Configurations & Cabinet Matching Specifications
| Number of Ways | Total Length (mm) | Recommended Cabinet Size (LxWxH mm) |
| 2 Ways | 100 | 400 x 450 x 150 |
| 3 Ways | 150 | 400 x 450 x 150 |
| 4 Ways | 200 | 400 x 450 x 150 |
| 5 Ways | 250 | 400 x 450 x 150 |
| 6 Ways | 300 | 400 x 450 x 150 |
| 7 Ways | 350 | 600 x 450 x 150 |
| 8 Ways | 400 | 600 x 450 x 150 |
| 9 Ways | 450 | 600 x 450 x 150 |
| 10 Ways | 500 | 600 x 450 x 150 |
| 11 Ways | 550 | 800 x 450 x 150 |
| 12 Ways | 600 | 800 x 450 x 150 |

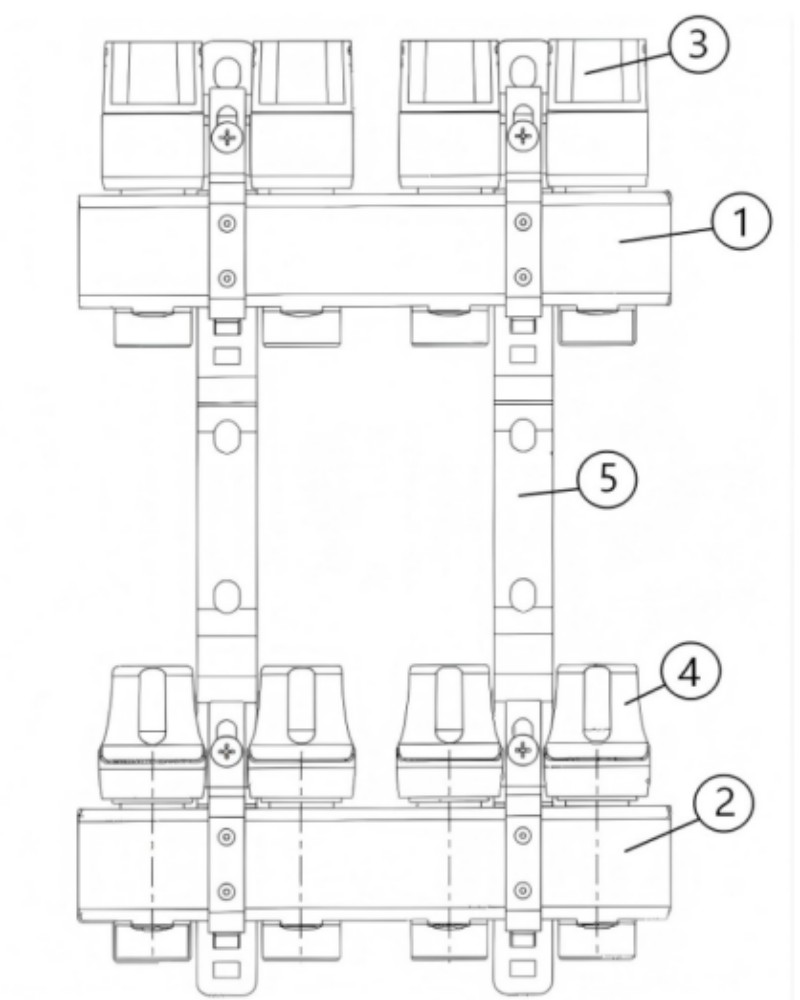

Product Structure Diagram
| ① Supply Pipe ② Return Pipe ③ Manual Balancing Valve Core ④ Automatic Control Valve Core ⑤ Manifold Mounting Bracket |
 |

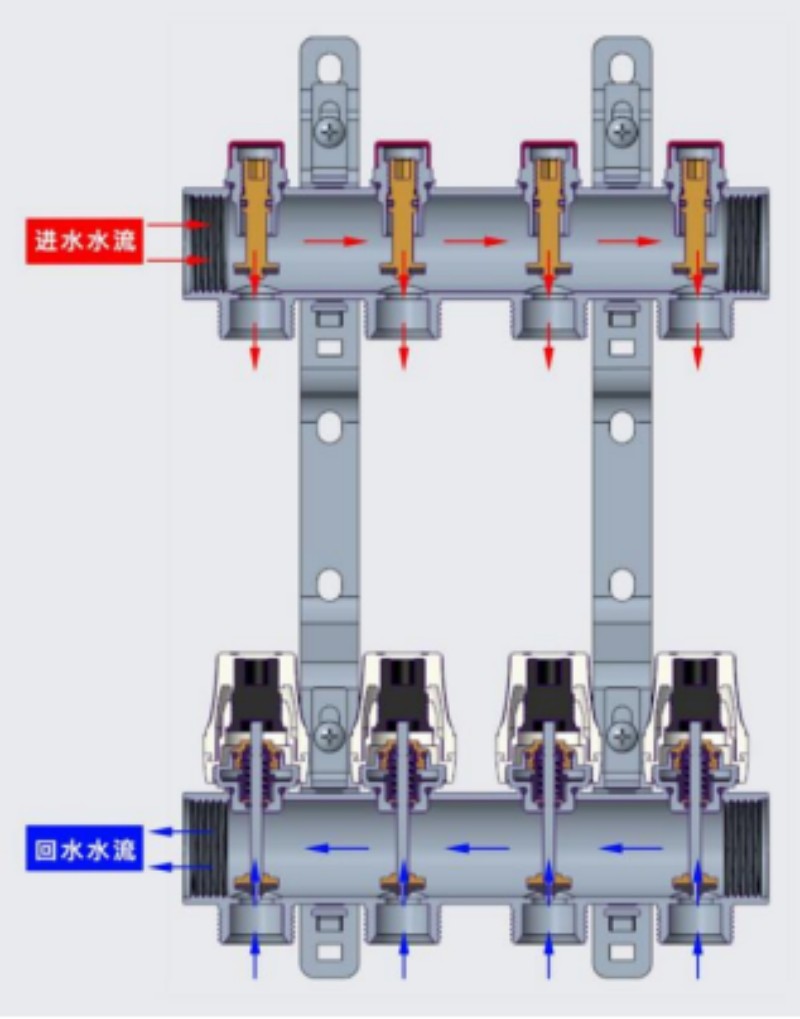

Structural Feature Diagram
| 1. Supply Pipe
The supply manifold is equipped with a manually adjustable valve core. |
 |

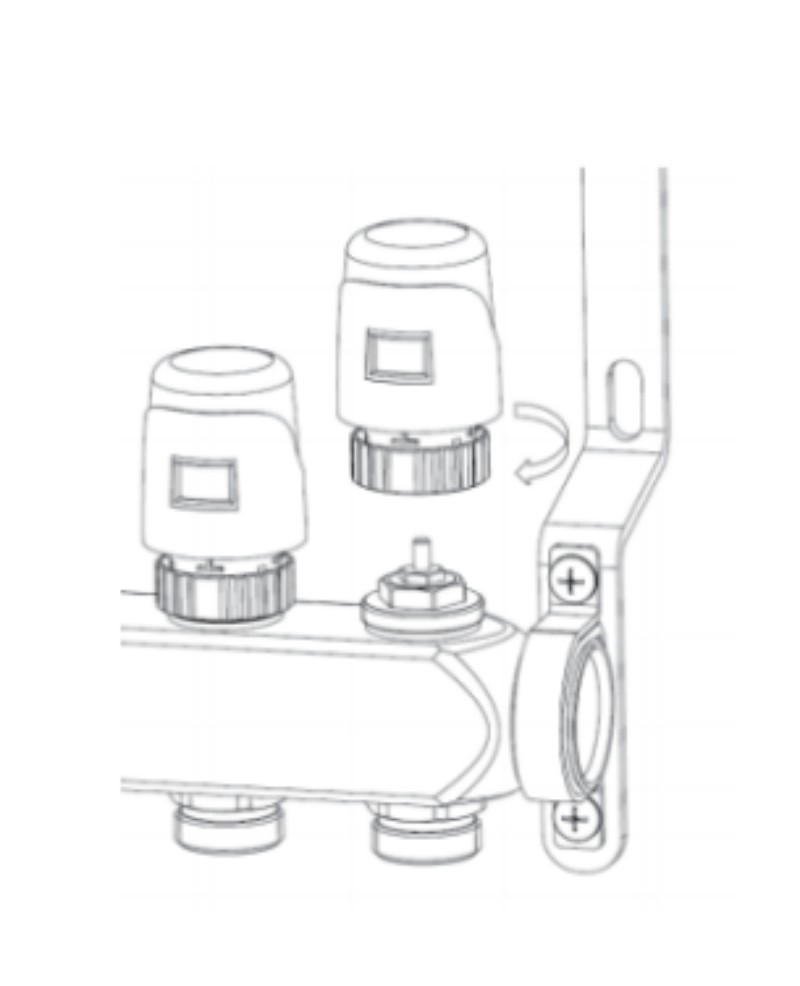

| 2. Return PipeThe return manifold is equipped with an adjustable valve core. When combined with an electro-thermal actuator and a room thermostat, the flow can be automatically regulated based on room temperature, maintaining the set temperature and meeting the heating load. During maintenance, do not forcibly open or close the valve core to avoid damage. |
 |

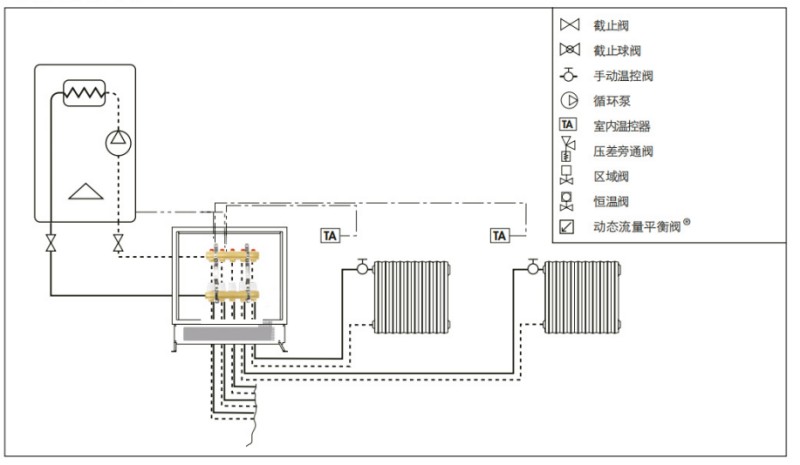

Structural Feature Diagram
 |
Shut-off Valve Shut-off Ball Valve Manual Thermostatic Valve Circulation Pump Room Thermostat [TA] Differential Pressure Bypass Valve Zone Valve Thermostatic Valve Dynamic Flow Balancing Valve®. |
OEM/B2B Technical Procurement Solution Matrix: XF20099 Series Manifold
| European Procurement Problems | How XF20099 Series Solves It | Verified Technical Specs |
| Standard Incompatibility Risks
(Worried that imported Chinese parts won't fit local European pipes, actuators, or electrical grids, causing project delays.) |
100% compatible with European plumbing and automation standards. Actuators match standard European voltage, and all threads follow international norms. | Threads: ISO228 standard .
Actuator Interface: M30x1.5. Actuator Voltage: 230V, 50/60Hz. |
| High On-Site Plumber Labor Costs
(European plumbers charge €50-€100+/hour. Complex balancing and air-bleeding destroy project profit margins.) |
Designed for rapid commissioning. System balancing requires only a basic tool, and air bleeding is automatic during the trial run. | Balancing: Built-in return pipe balancing valve adjustable with a standard 5mm hex wrench .
Bleeding: Automatic air exhaust function during trials. |
| Leakage Liabilities & Winter Freezing
(O-ring failures or frozen cracked manifolds in Northern Europe lead to catastrophic property damage claims against the contractor.) |
Built with premium anti-corrosive brass and high-end EPDM seals. Engineered to handle extreme pressures, high temperatures, and anti-freeze chemical mixtures. | Materials: Brass body (polished & varnished) with EPDM seals .
Limits: Max 10Bar pressure, ≤100°C temp . Medium: Tolerates up to 50% Glycol solutions for freeze protection. |
| Fragmented Supply Chain & Sizing
(Sourcing different manifold sizes and matching cabinets from multiple vendors increases shipping costs and missing parts risks.) |
One-stop modular sourcing. We provide a complete range of loop sizes with precisely matching installation cabinets direct from our factory. | Branches: 2 to 12 loops with 50mm branch spacing .
Cabinets: Matching sizes from 400x450x150mm to 1000x450x150mm. |
| Cross-Border Accountability
(Fear of "ghosting" by overseas suppliers if a batch defect occurs, leaving the European importer holding the bag.) |
Direct factory backing from Zhejiang Xinfan HVAC Intelligent Control Co., Ltd., complete with formal warranties and guaranteed free replacement parts for non-human faults. | Warranty: 2-year warranty under normal use .
Support: Lifetime technical support and free parts replacement for manufacturer defects. |

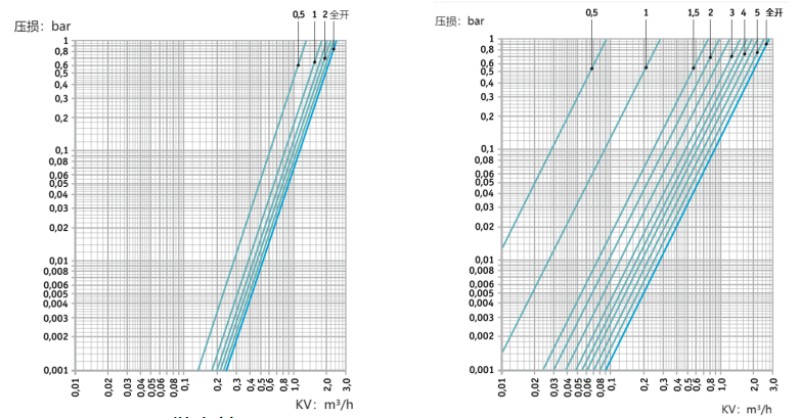

Hydraulic Performance Curves
Processing Steps
Raw Material, Forging, Roughcast, Slinging, CNC Machining, Inspection, Leaking Test, Assembly, Warehouse, Shipping
Material Testing, Raw Material Warehouse, Put In Material, Self-Inspection, First Inspection, Circle Inspection, Forging, Annealing, Self-Inspection, First Inspection, Circle Inspection, Machining, Self-Inspection, First Inspection, Circle Inspection, Finished Inspection, Semi-Finished Warehouse, Assembling, First Inspection, Circle Inspection, 100% Seal Testing, Final Random Inspection, Finished Product Warehouse, Delivering
 |
 |
Main Export Markets
Europe,East-Europe,Russia,Middle-Asia,North America,South America and so on.
